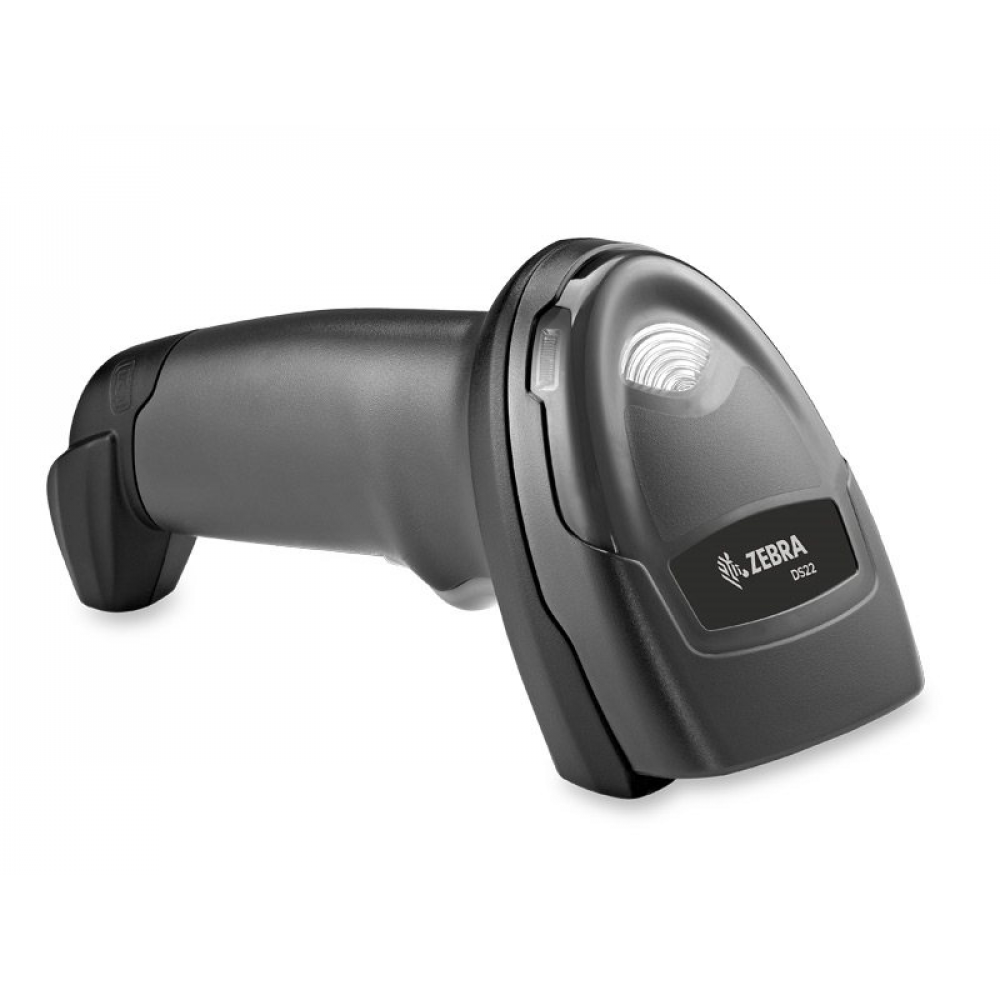

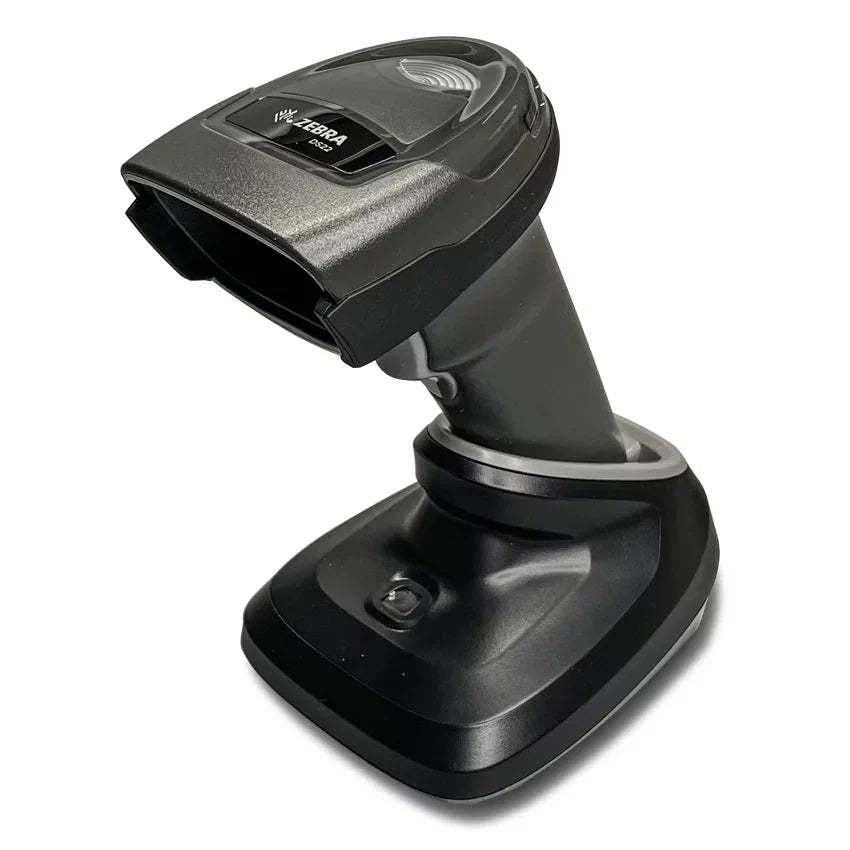

Zebra DS2278 – Wireless Barcode Scanner

Zebra DS2278 – Zebra DS2278 – 2D Wireless Barcode Scanner

The Zebra DS2278 barcode scanner is a 2D wireless scanner designed for intensive commercial environments. It combines exceptional reading performance with an ergonomic design and a long-lasting battery, making it the ideal choice for points of sale, warehouses, and retail.

Technical Specifications (Source: Official Zebra Technologies)

• Scanning Technology: CMOS Area Imager
• Wireless Connectivity: Bluetooth 4.0 (Classic + BLE) – Range up to 10 meters (33 feet)
• Supported Barcodes (1D): UPC/EAN, Code 128, Code 39, Code 93, Interleaved 2 of 5, Codabar, MSI, RSS and others
• Supported Barcodes (2D): QR Code, Micro QR, Data Matrix, PDF417, Micro PDF, Aztec, MaxiCode
• Scan Speed: Up to 547 scans per second
• Field of View: Pitch: ±60°, Skew: ±60°, Roll: 360°
• Battery: Rechargeable Li-Ion – 1100 mAh
• Battery Life: Up to 14 hours of continuous use (50,000 scans)
• Charging: Via CR2278 charging cradle (included)
• Protection Rating: IP52 (dust and splash resistant)
• Drop Resistance: 1.5 meters (5 feet) to concrete
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -40°C to 70°C
• Humidity: 5% to 95% (non-condensing)
• Weight: 148 grams (with battery)
• Dimensions: Length 16.2 cm × Width 6.7 cm × Height 9.9 cm
• Interface: USB HID, USB COM, RS-232, IBM 46xx, Keyboard Wedge
• Supported Operating Systems: Windows, Android, iOS, Linux
• Color: Black
• Warranty: One year from Zebra Technologies

Package Contents

• DS2278 Scanner
• CR2278 Charging Cradle
• USB Cable
• Li-Ion Battery
• Quick Start Guide
